                                                       FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE   Made in Taiwan

                                              90° Bag Transfer Gripper Type Tow Servo Motors

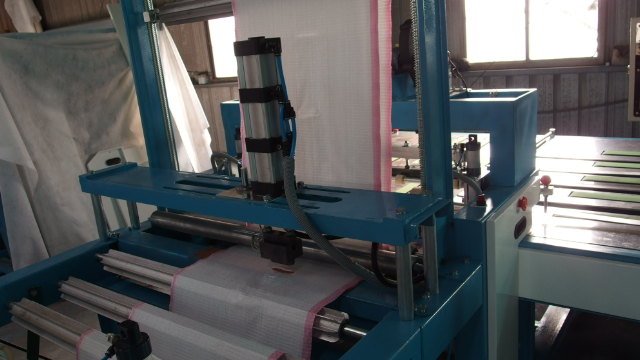

  LE-2000DN2+P    pp woven bag PUNCH HAND HOLE CUTTING SEWINE MACHINE



                                                                                                                    VCD       VCD HD


¡@



¡@

Description:

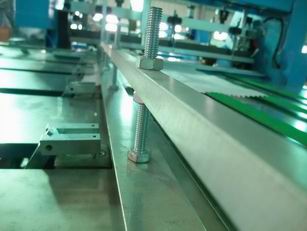

● 90° Servo Transfer Reciprocate Movement  Gripper Type。

● Increase pp woven bag transmit stable and the advantages  enhance output 。

● Ingredient's quick change。

● Two Servo Motor increase largely the quantity of output of cut bags。

● Heat Cutting inverter Motor Control 。

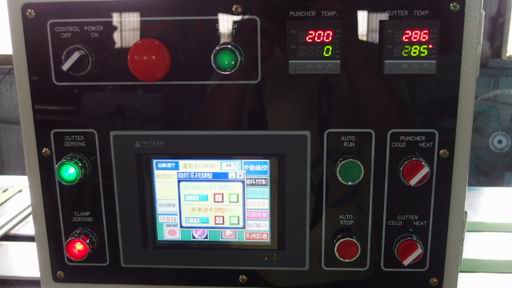

● Touch Control machine operation interface。

        ● The new two surfaces broken bags surface inspection receipt device ¡C

● High speed production capacity 35~46pcs(BAG/MIN)。

              ( new 90¢X Gripper Warranty 3 year)

       SPECIFICATION

MODEL

LE-2000DN2+P

CHARACTERISTIC

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 3.5HP Servo Motor  x1PCS
        90°Degrees Transfer Driven Motor   3.5HP Servo Motor X1PCS

   CONTINUOUS CUTTING

HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control
  Cutting Knife Driven Motor                    1/2 HP AC Motor With Inverter Control
Cutting Knife Unit               Flat Type High Quality Alloy Steel Cutter
Sewing Unit       New Long  DN-2HS
               Sewing Thread Broken Alarm      Enclosed
               E.P.C     Edge Position Controller      Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

35~46pcs(BAG/min)

CUTTING LENGTH

 500~1400 mm

CUTTING WIDTH

300~850 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER

             1 PERSONS

POWER REQUIRED

7.8KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L5800mm x W4180mm x H1360mm  ( N.W2268KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
