型號

MODEL

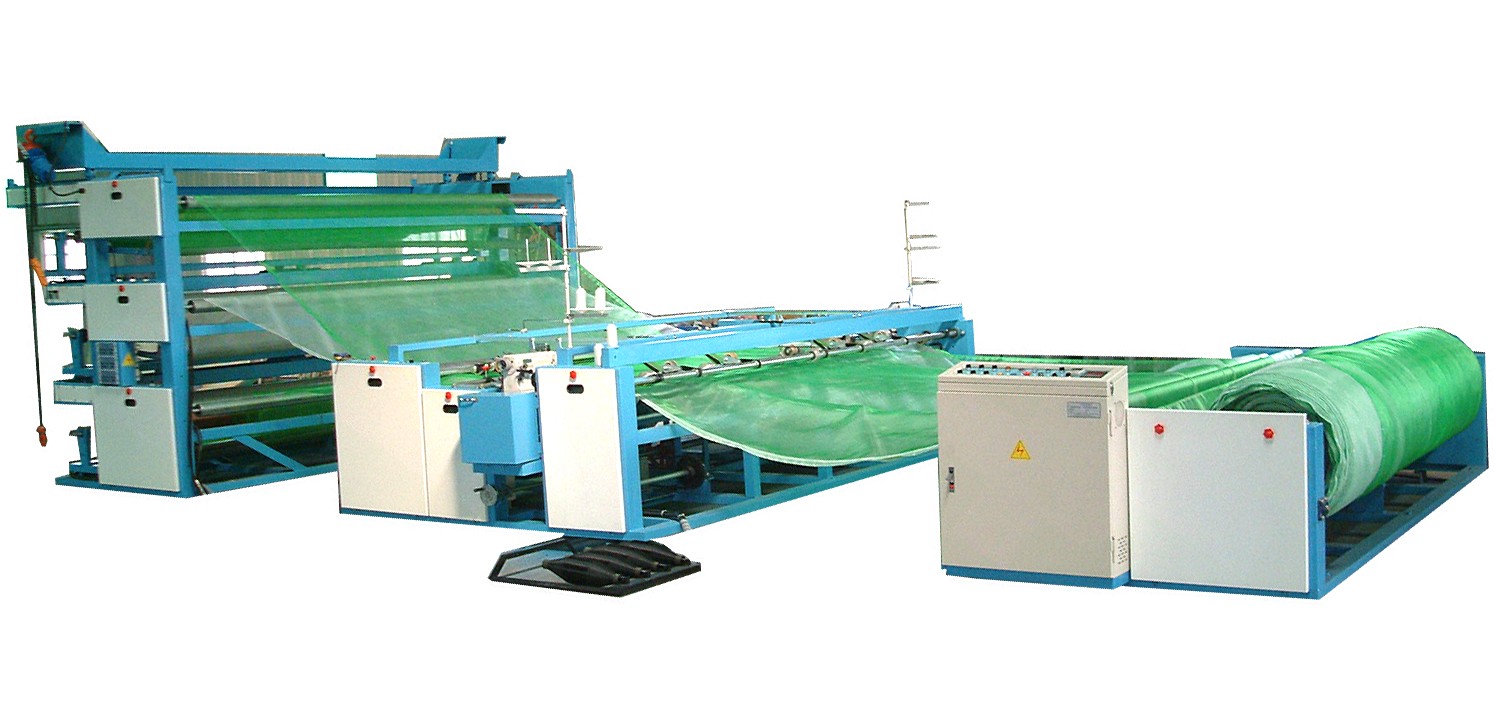

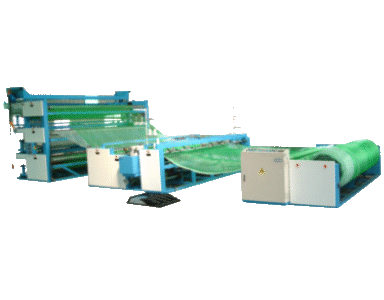

LE-3500Z

特性

CHARACTERISTIC

AUTOMATIC SEWING&Coalescence

適用材質

APPLICABLE PLASTIC CLOTH

PP/PE ONION  BAGS

型態

 TYPE

Reel to Reel

放料

SUPPLY CLOTH STAND

3 PS    E.P.C X3

收料

DELIVERY UNIT

1 PS

產量

PRODUCTION CAPACITY

 10-30 m/min

製袋面積

CAPACITY OF BAG

2900mm~3700mm

每吋針數

STITCHING RANGE

5~12 (P/MM) two suture

馬力

POWER

8.5HP

折邊寬度

SIDE FOLDING WIDTH

15~25MM Doble Sigular(Como lo vea manual)

耗電量

POWER COMSUMPTION

14.3KW

包裝

PACKING

STANDARD Bar iron fixation PALLET& 1X40"CONTAINER

人力

MAN POWER

2 PERSONS

裝櫃尺寸

CUBAGE  ARK

1X40"尺

機械尺寸

MACHINE DIMENSION

L8300xW4800xH2550MM(N.W3800KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

規格若有變動恕不另行通知
