LE-4PR

"PP WOVEN BAG" REEL TO REEL LINE MACHINE

	MODEL	LE-2800PR
	CHARACTERISTIC	AUTOMATIC FLEXOGRAPHIC COLOR PRINTING
	APPLICABLE PLASTIC CLOTH	PP/PE WOVEN BAGS&PE BAG
	PRODUCTION CAPACITY	70~120M/Minute
	PRINTING POSSIBILITY	0+2 , 1+1
	NO.OF COLOR	2 COLORS
	PRINTING WIDTH	400MM~850 MM
	PRINTING LENGTH	500-1300 MM
	PRINTING	RUBBER PLATE , ZINE PLATE (7MM)
	POWER	2HP
	POWER COMSUMPTION	14.2KW
	PRINTING INK	INK
	MACHINE DIMENSION	L7800 x W2200 x H3750MM (N.W 7500KGS)
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

360° continuous and adjustable longitudinal register device.
Easy operation flexible starting accurate color register.
The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
Current output type temperature control system makes heating quicker and electricity saving.
The printing ink is spread by the knurled cylinder with even ink color.
Obverse and reverse side once-through continuous printing.
The imported frequency control of motor speed adapts to different printing speeds.
There are inch&stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

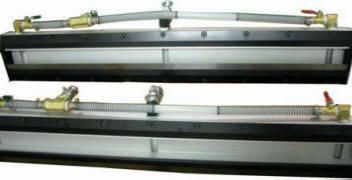

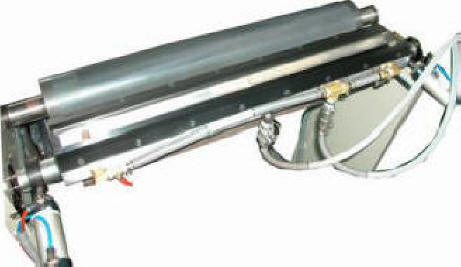

DOCTOR BLADES
