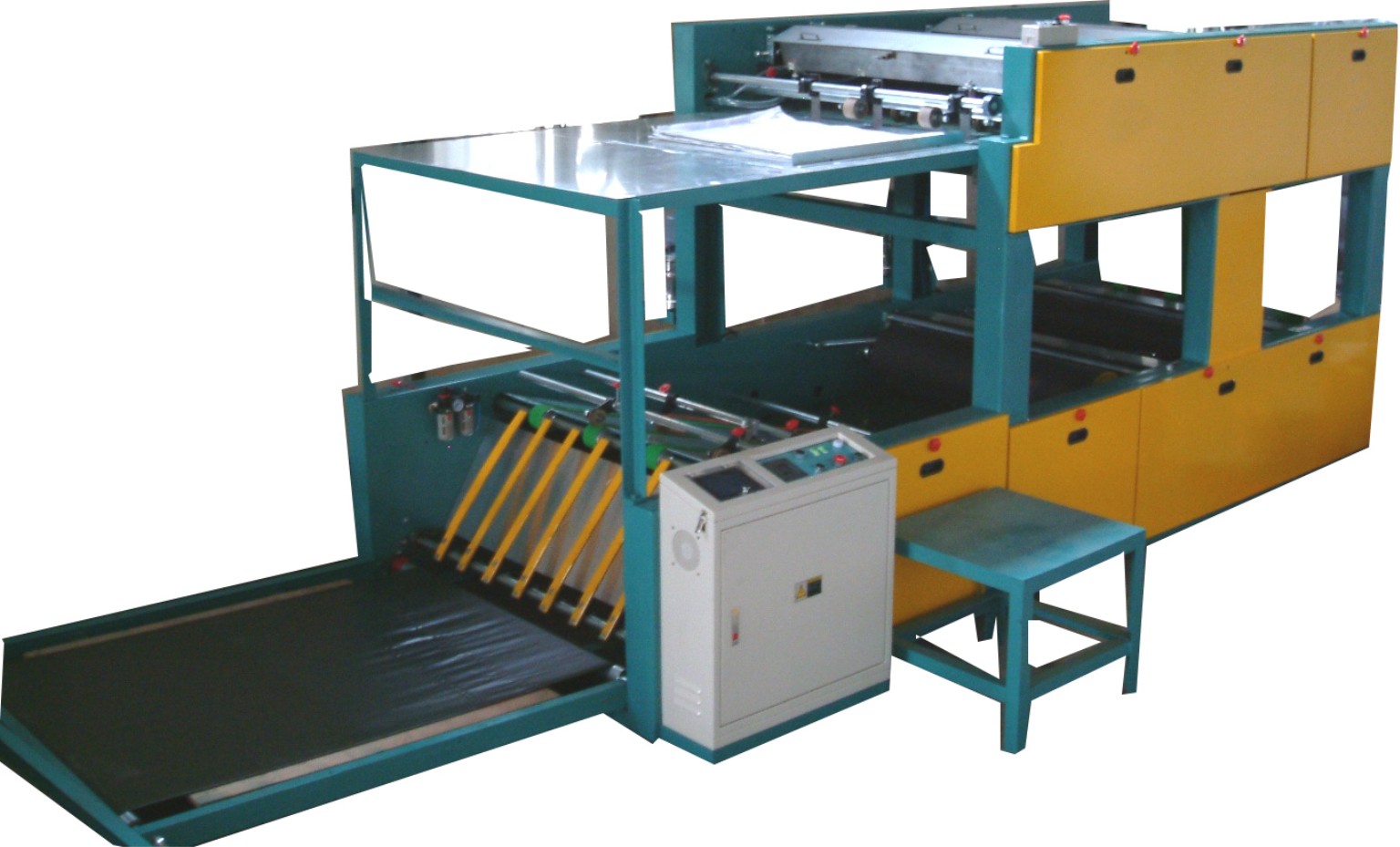

No change print roller TWO SURFACE COLOR PRINTING
PAT
PP/PE woven bag flexographic
printing press Special Features:
※Can
be individually operated(manual feeding type) or connect with most
brand's conversion line and become a integrated line that combines cutting,
sewing & printing features into a fully automatic processing unit.
※Single
sided or double sided, 1 to 6 colors combination available per request.
※Special
separation device between color-plate cylinder and conveying belt to
avoid stain during empty load.
※No
need to change roller(s) for different size's imprint and/or bag measurements
within rated range.
Main Feature:
· High Output UpTo 50 Bag/Min.
· Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.
· Special Desinrn For Change The Printing Plate Quickly And Easily.
· Easy Operation.
· Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.
MODEL
|
LE-1+2
|
LE-2+2 |
CHARACTERISTIC
|
TWO SURFACE COLOR PRINTING
|
TWO SURFACE COLOR PRINTING |
APPLICABLE PLASTIC CLOTH
|
PP/PE WOVEN BAGS
|
PP/PE WOVEN BAGS |
PRODUCTION CAPACITY
|
0 ~ 40(BAG/MIN)
|
0 ~ 40(BAG/MIN) |
CAPACITY OP BAG
|
130CM X 85CM
|
130CM X 85CM |
AREA OF PRINTING
|
105CM X 80CM
|
105CM X 80CM |
PRINTING
|
RUBBER PLATE , ZINE PLATE (7MM)
|
RUBBER PLATE , ZINE PLATE (7MM) |
MAN POWER |
1~2 PERSONS |
1~2 PERSONS |
MAIN DRIVING MOTOR
|
2HP
|
2HP |
POWER COMSUMPTION
|
3.5KW
|
3.6KW |
PRINTING INK
|
FLEXO INK
|
FLEXO INK |
MACHINE DIMENSION
|
L7807x W1650 x H1980MM (N.W3000KGS)
|
L7807 x W1650 x H1980MM (N.W3300KGS) |
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET
ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
|
OPTIONAL EQUIPMENTS: | |
AUTO BAG | |
CERAMIC ANILOX ROLLER | |
INK PUMP |
