LE-353
|
MODEL |
LE-353 |
|
CHARACTERISTIC |
AUTOMATIC CUTTING&SEWING PRINTING MACHINES |
|
APPLICABLE PLASTIC CLOTH |
PP/PE WOVEN BAGS |
|
CONTINUOUS CUTTING |
HEAT SUCCESSIVE CUTTING |
|
Servo Motor |
2 hpx1 Set |
|
LAMINATED CUTTING |
1PCS |
|
PRODUCTION CAPACITY |
25~30(BAG/MIN) |
|
CAPACITY OF BAG |
1300MM X 850MM |
|
CUTTING LENGTH |
550~1300 MM |
|
CUTTING WIDTH |
400~850
MM |
|
BAG MOUTH ANTI-STUCK DEVICE |
EQUIPPED |
|
CUTTING ACCURACY |
+.-
1MM |
|
STITCHING RANGE |
6~12
(P/MM) |
|
DELIVERY UNIT |
COUNTING STACK TYPE BELT CONVEYOR |
|
SIDE FOLDING WIDTH |
15~25MM |
|
AREA OF PRINTING |
105CM X 85CM |
|
PRINTING PLATE |
RUBBER PLATE,2INE PLATE |
|
PRINTING |
RUBBER PLATE , ZINE PLATE (7MM) |
|
MAIN DRIVING MOTOR
|
AC 2HPX2 , 1HPX2 , 1/4HPX1 |
|
POWER REQUIRED |
12KW |
|
PRINTING INK |
FLEXO INK |
|
MAN POWER |
1 PERSONS |
|
PACKING |
STANDARD WOODEN PALLET& 1X40"CONTAINER |
|
AIR COMPRESSOR |
3HP X 1UNIT |
|
CUBAGE ARK |
1X40" |
|
MACHINE DIMENSION |
L10400 x W3820 x H1600MM (N.W6400KGS) |
|
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE |
|

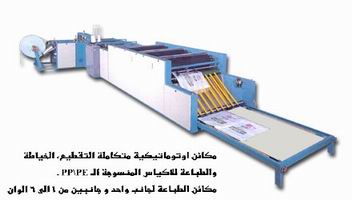

LE-302 ~ LE-305
We are the unique manfacturer, using button
register adjusting equipment to adjust the printing cylinders without stopping
the machine and produce defect-free products.
|
MODEL |
LE-302 |
LE-303 | LE-304 | LE-305 |
|
CHARACTERISTIC |
AUTOMATIC CUTTING&SEWING PRINTING MACHINES |
|||
|
APPLICABLE PLASTIC CLOTH |
PP/PE WOVEN BAGS |
|||
|
PRODUCTION CAPACITY |
22~28(BAG/MIN) |
|||
|
CAPACITY OF BAG |
125CM X 85CM |
|||
|
CUTTING LENGTH |
550~1250
MM |
|||
|
CUTTING WIDTH |
400~850 MM |
|||
|
STITCHING RANGE |
6~12
(P/MM) |
|||
|
BAG MOUTH ANTI-STUCK DEVICE |
EQUIPPED | |||
|
DELIVERY UNIT |
COUNTING STACK TYPE BELT CONVEYOR |
|||
|
CUTTING ACCURACY |
+.- 4MM |
|||
|
SIDE FOLDING WIDTH |
15~25MM |
|||
|
AREA OF PRINTING |
105CM X 85CM |
|||
|
PRINTING PLATE |
RUBBER PLATE,2INE PLATE |
|||
|
PRINTING |
RUBBER PLATE , ZINE PLATE (7MM) |
|||
|
MAIN DRIVING MOTOR
|
AC 2HPX2 , 1HPX2 , 1/4HPX1 |
|||
|
POWER REQUIRED |
12KW |
12.5KW |
13KW |
13.5KW |
|
AIR COMPRESSOR |
3HP X 1UNIT |
|||
|
PRINTING INK |
FLEXO INK |
|||
|
MAN POWER |
1 PERSONS |
|||
|
PACKING |
STANDARD WOODEN PALLET& 1X40"CONTAINER |
|||
|
MACHINE DIMENSION |
L10200 x W3820 x H1600MM (N.W4800KGS) |
L10300 x W3820 x H1600MM (N.W5600KGS) |
L10400 x W3820 x H1600MM (N.W6400KGS) |
L10500 x W3820 x H1600MM (N.W7200KGS) |
|
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE |
||||
| OPTIONAL EQUIPMENTS | |
| HEAT&COLD SUCCESSIVE CUTTING | |
|
E P C AUTOMATIC GUIDING DEVICE |
1PCS |
|
RINTING PHOTOCELL (MARK) |
1PCS |
|
SERVO MOTOR |
2.0kw JAPAN |
|
PROGRAM MALE OPERATION DISPLAY |
1PCS |
