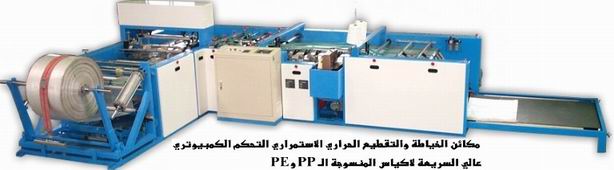

MODEL

LE-50

CHARACTERISTIC

AUTOMATIC CUTTING&SEWING

           SERVO MOTOR

　                             2.0kw JAPAN

SUCCESSIVE CUTTING

　HEAT  SUCCESSIVE CUTTING

SEWING MACHINE

(DK-3) 1PCS

LAMINATED CUTTING

1PCS

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

35~42pcs(BAG/MIN)

CUTTING LENGTH

 550~1250 MM

CUTTING WIDTH

400~850 MM

CUTTING ACCURACY

+.-  1MM

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

3.8~8 (P/MM)

DIAMETER OF UNWINDING CLOTH

1200 MM

SIDE FOLDING WIDTH

15~25MM

MAN POWER

1 PERSONS

MAIN DRIVING MOTOR

AC   2HPX1  ,  SERVO MOTOR 2.0KWX1 , 1HPX1 , 1/4HPX1

POWER REQUIRED

11KW

AIR COMPRESSOR

3HP X 1UNIT

DELIVERY UNIT

COUNTING STACK TYPE BELT CONVEYOR

MACHINE DIMENSION

L7880 x W3880 x H1360MM    (N.W 3030KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
